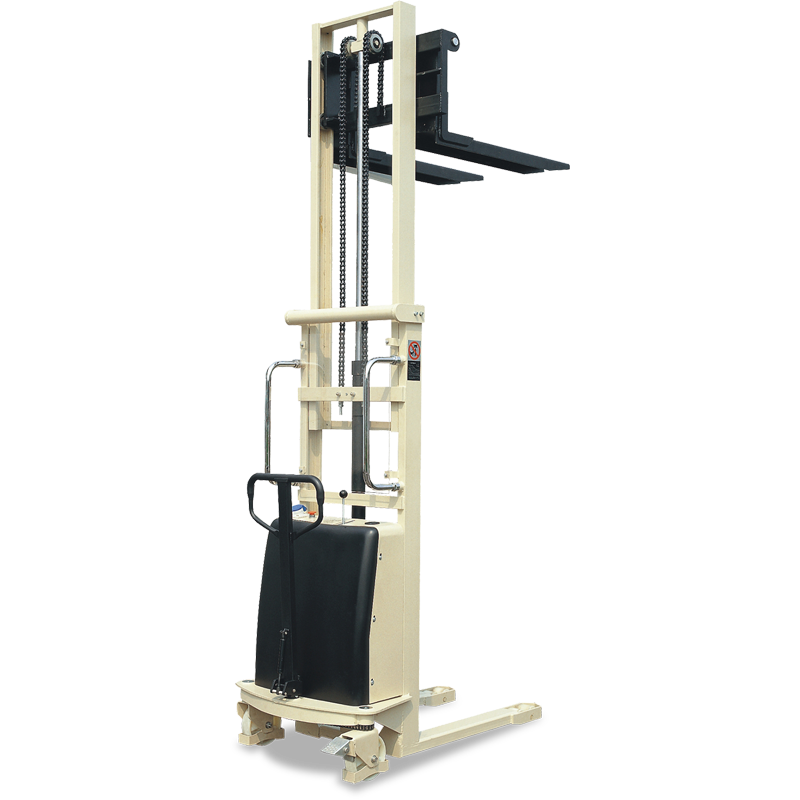

Semi-electric Pallet Stacker
Pallet Stacker
- Manual Drive, Electric Lift Stacking Machine
- Reinforced Design, Durable Powder Coat Paint Finish
- 1 Year Warranty
Pallet Stacker
|
|
|
|
|||||
Model Number |
LPG-NBL-001 |
LPG-NBL-002 |
LPG-NBL-003 |
LPG-NBL-004 |
||||
Capacity (kg) |
1000 |
1000 |
1000 |
2000 | ||||
Fork Span (mm) |
330 - 640 |
330 - 640 |
330 - 640 |
330 - 740 | ||||
Fork Length (mm) |
1100 |
1100 |
1100 |
1100 | ||||
Fork Width (mm) |
150 |
150 |
150 |
150 | ||||
60 |
60 |
60 |
60 | |||||
Load Centre (mm) |
500 |
500 |
500 |
500 | ||||
Lift Height (mm) |
85 - 1600 |
85 - 2500 |
85 - 3000 |
85 - 1600 | ||||
1980 |
1830 |
3070 |
3570 |
2080 |
1980 | |||
Turning Radius (mm) |
1350 |
1350 |
1350 |
1520 | ||||
Overall Length (mm) |
1720 |
1720 |
1720 |
1800 | ||||
Overall Width (mm) |
777 |
777 |
777 |
777 | ||||
|
Enquire For Price Add to Quote |
Enquire For Price Add to Quote |
Enquire For Price Add to Quote |
Enquire For Price Add to Quote |
|||||
Specification PDF |
This pallet stacker is ideal for moving pallets without bottom boards. When lifting the pallet, the legs also go under the pallet with the forks. The forks of this pallet stacker are raised and lowered electrically, while the operator pushed the unit around to move it.
