Straddle Stacker
Manual Pump Pallet Stacker
- Adjustable Straddle Legs and Fork Width for Varying Pallet Sizes
- Dual-Use Foot and Hand Pump Options with Soft-Release Handle
- 1 Year Warranty

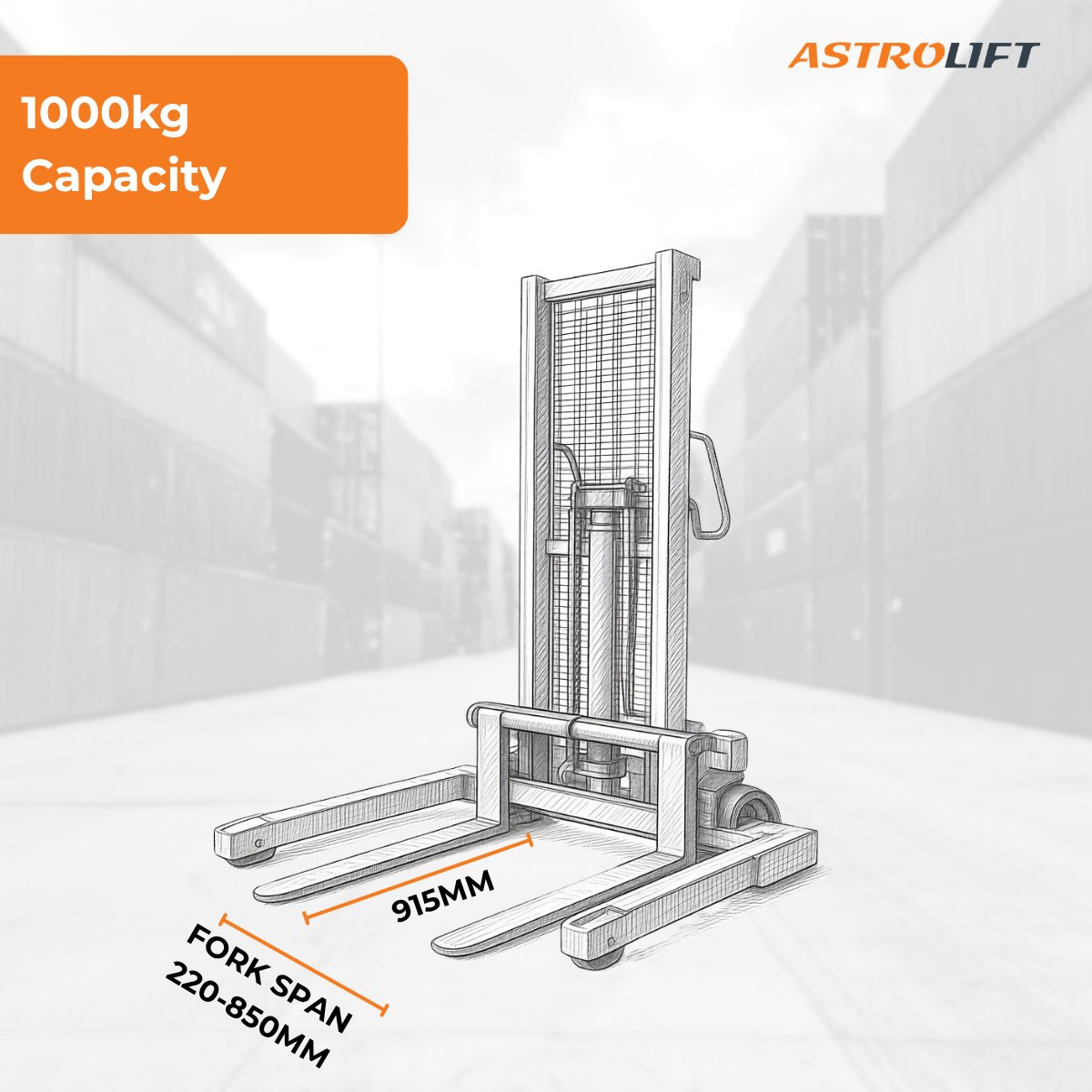

Manual Pump Pallet Stacker
|
|
Model Number |
LPS-NBL-006 |
Capacity (kg) |
1000 |
Fork Span (mm) |
220 - 850 |
Fork Length (mm) |
915 |
Fork Width (mm) |
100 |
Load Centre (mm) |
500 |
Lift Height (mm) |
60 - 1600 |

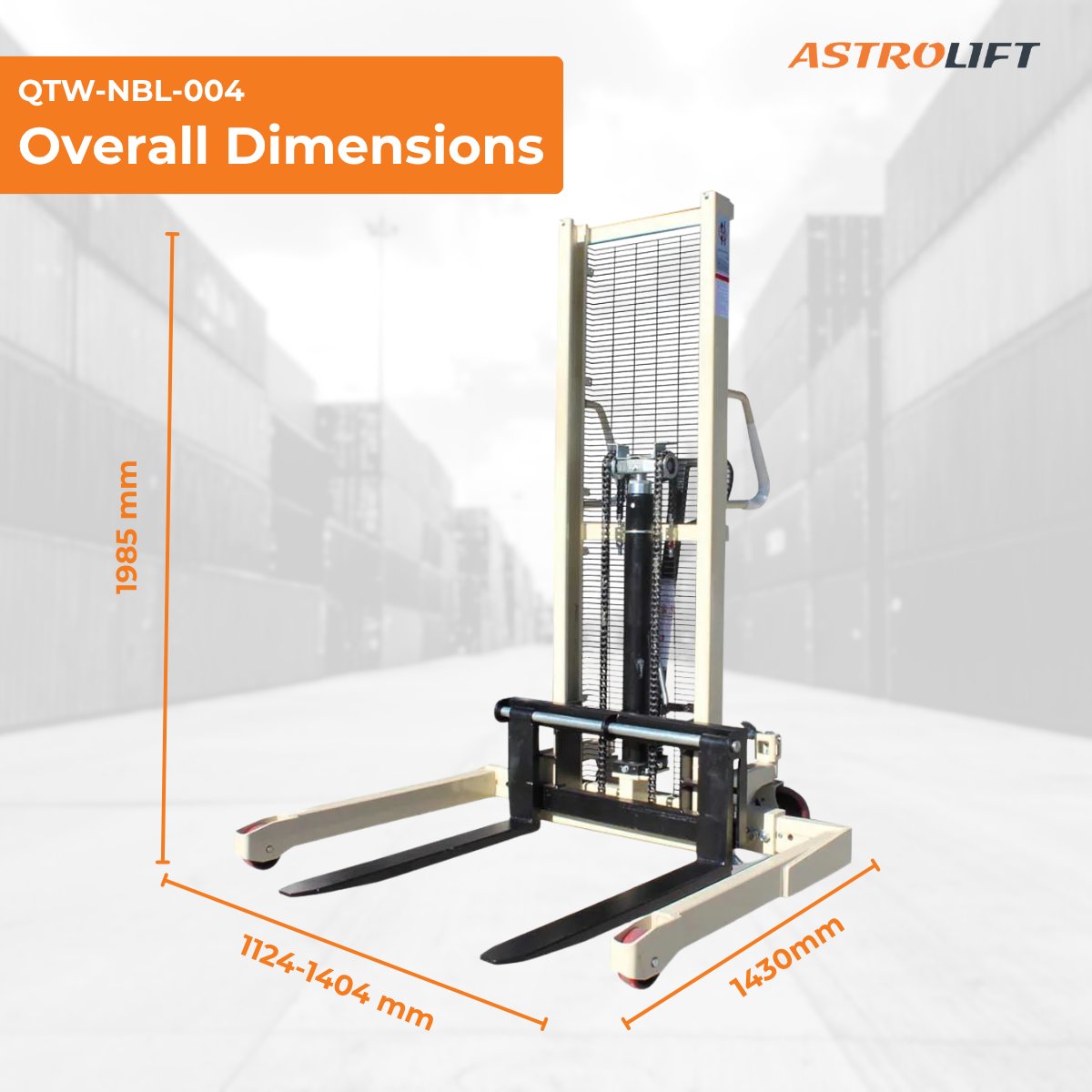

Overall Length (mm) |
1430 |
Overall Width (mm) |
1124 - 1404 |
Overall Height (mm) |
1985 |
|
Enquire For Price Add to Quote |
|
Specification PDF |

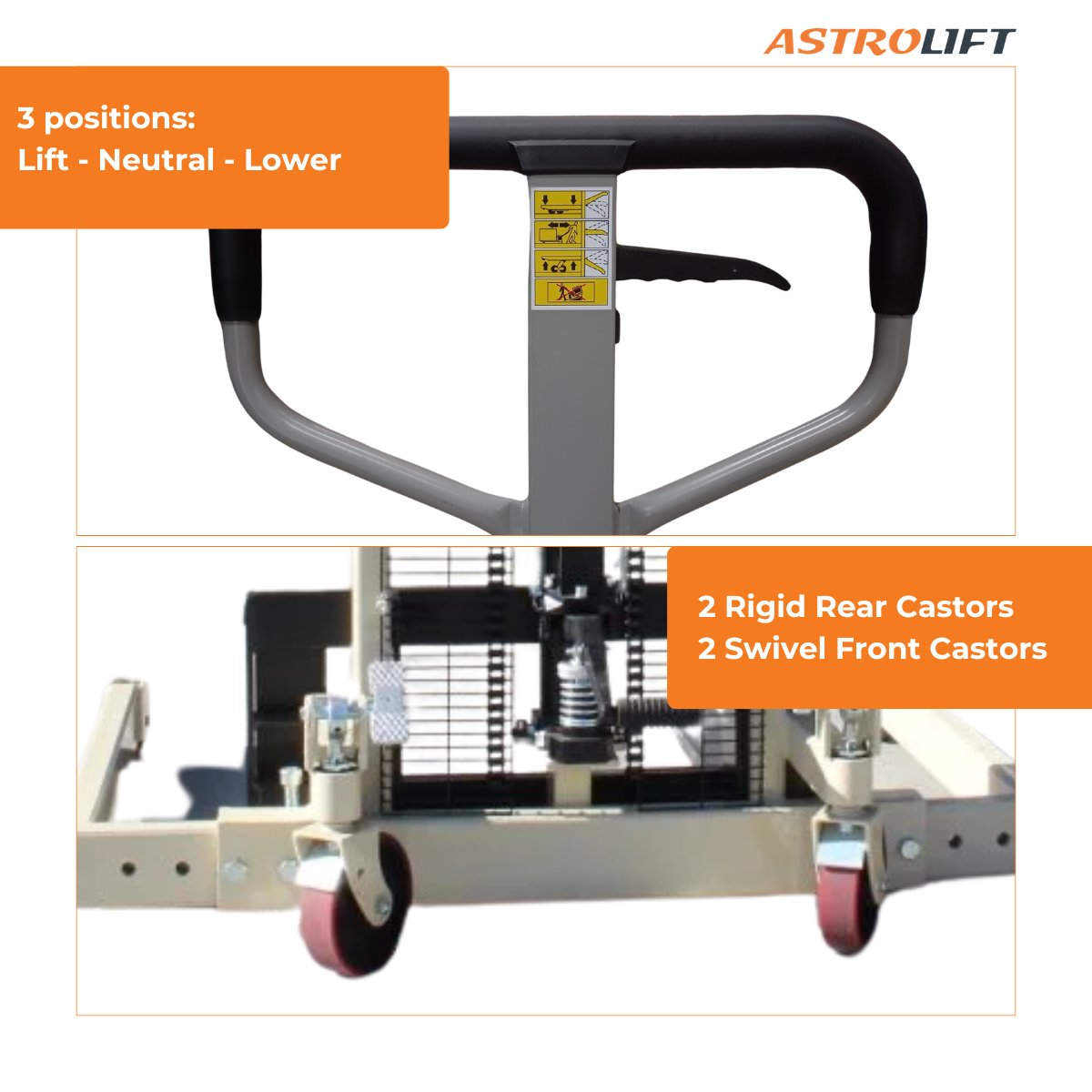

Straddle pallet stackers are designed for lifting pallets that have bottom boards. Where a regular stacker's legs go under the pallet, lifting the forks would snap the bottom boards off as they catch on the legs. This straddle stacker has adjustable legs that go around the outside of the pallet to avoid this issue. The forks are lifted via the tiller hand-pump or foot pump and lowered by a release trigger on the tiller. The width of the straddle legs are adjustable.
