Fork Lifter (Winch)
Manual Winch Multipurpose Lift

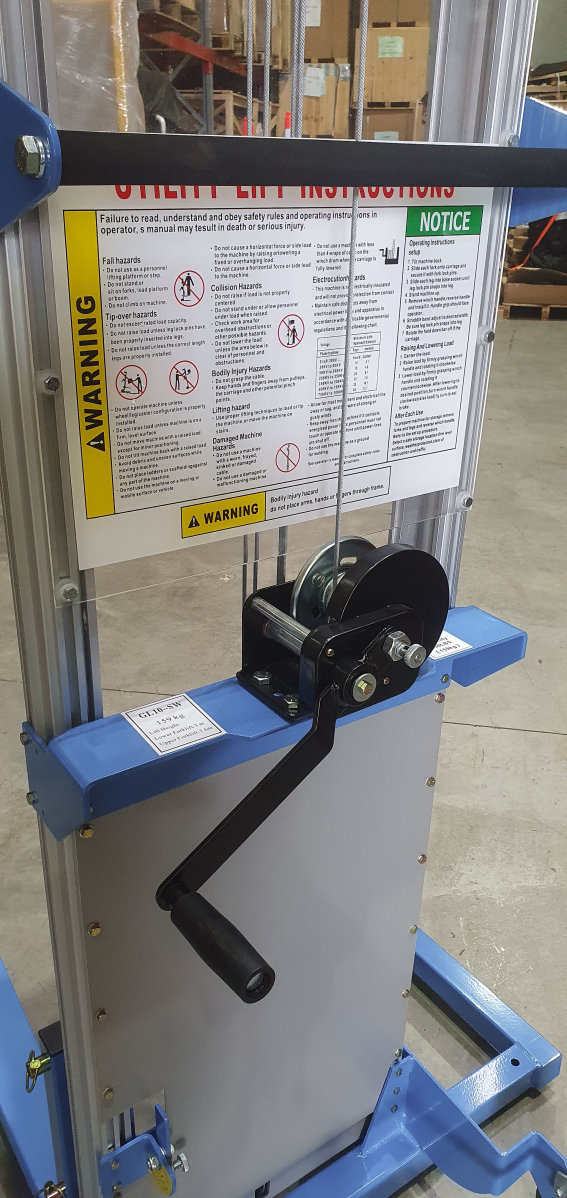

- Manual Winch with Brake
- Compact Material Handling Solution for Compact Spaces
- 1 Year Warranty
Manual Winch Multipurpose Lift
.jpg)
|
|
|
Model Number |
LUZ-NBL-001 |

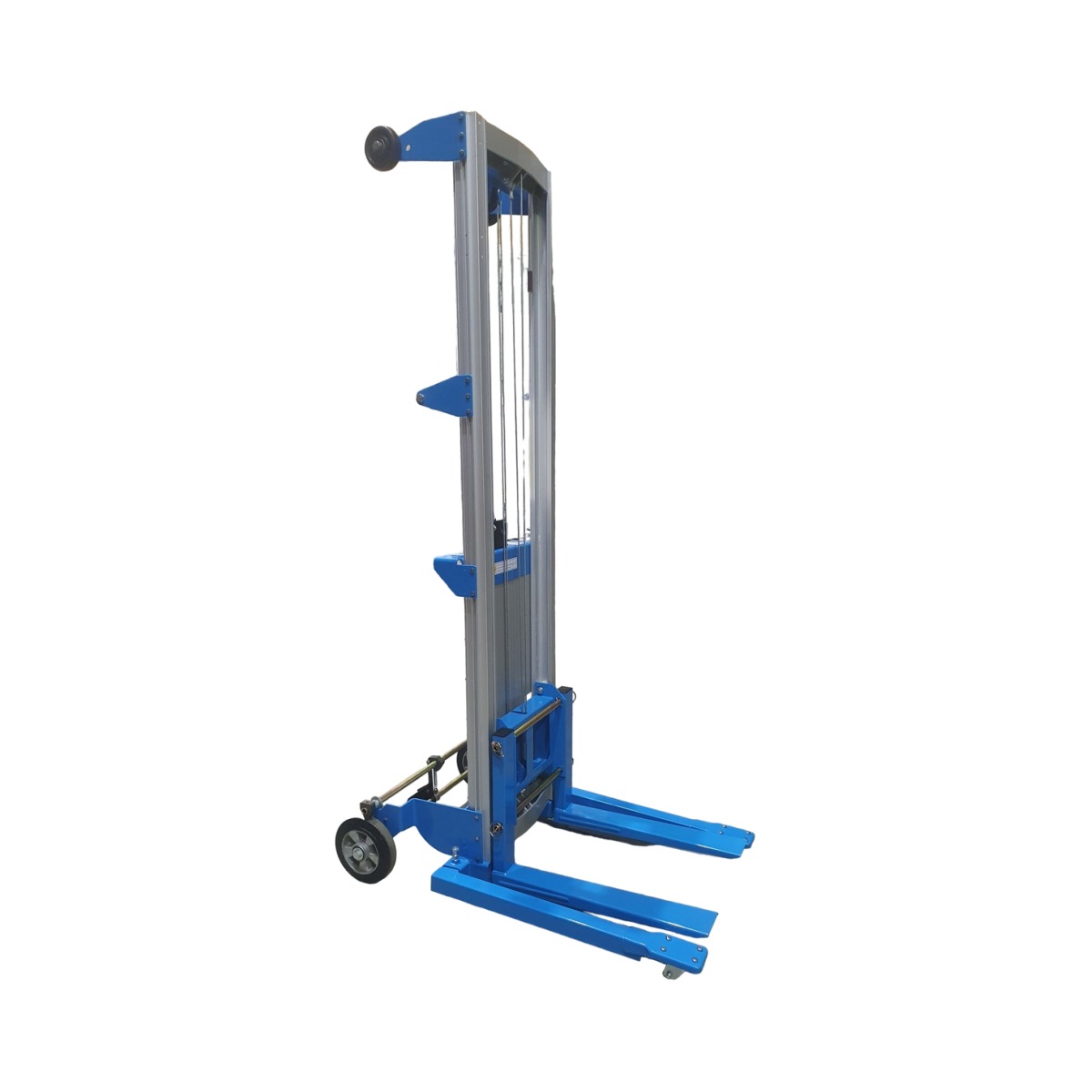

LUZ-NBL-010 |
Capacity |
181 |
159 |
Lift Height (mm) |
2500 |
3090 (3640 forks up) |
Free Lift Height (mm) |
1550 | |
Height Fully Lowered (mm) |
90 |
80 |
Height Fully Raised (mm) |
3375 / 3640 | |
Overall Height (mm) |
1700 |
2025 |
Overall Width (mm) |
630 |
760 / 1115 |
Overall Length (mm) |
1080 | |
Drive Type |
Manual |
Manual |
Lift Type |
Manual |
Manual |
Fork Spread (mm) |
520 |
530 |
Fork Length (mm) |
570 |
570 |
Fork Size (mm) |
105 W x 45 D | |
Load Centre (mm) |
360 | |
Leg Height (mm) |
85 | |
Leg Length (mm) |
630 | |
Width in Between Legs (mm) |
555 / 910 | |
Front Wheel Diameter (mm) |
50 | |
Rear Wheel Diameter (mm) |
200 | |
Unit Weight (kg) |
60 |
68 |
|
$1,595.00 |
$1,850.00 |
|
Specification PDF |

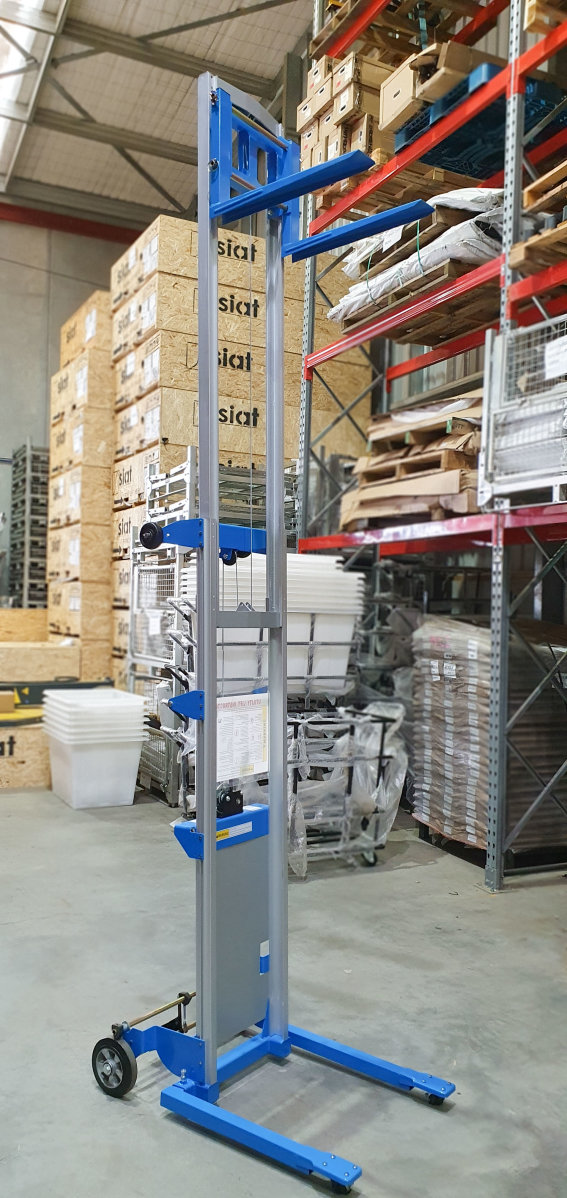

Winch powered platform lifter with forks from Astrolift is designed with agility and strength in mind. Quality construction and heavy duty design makes this platform lifter ideal for a wide variety of tasks.

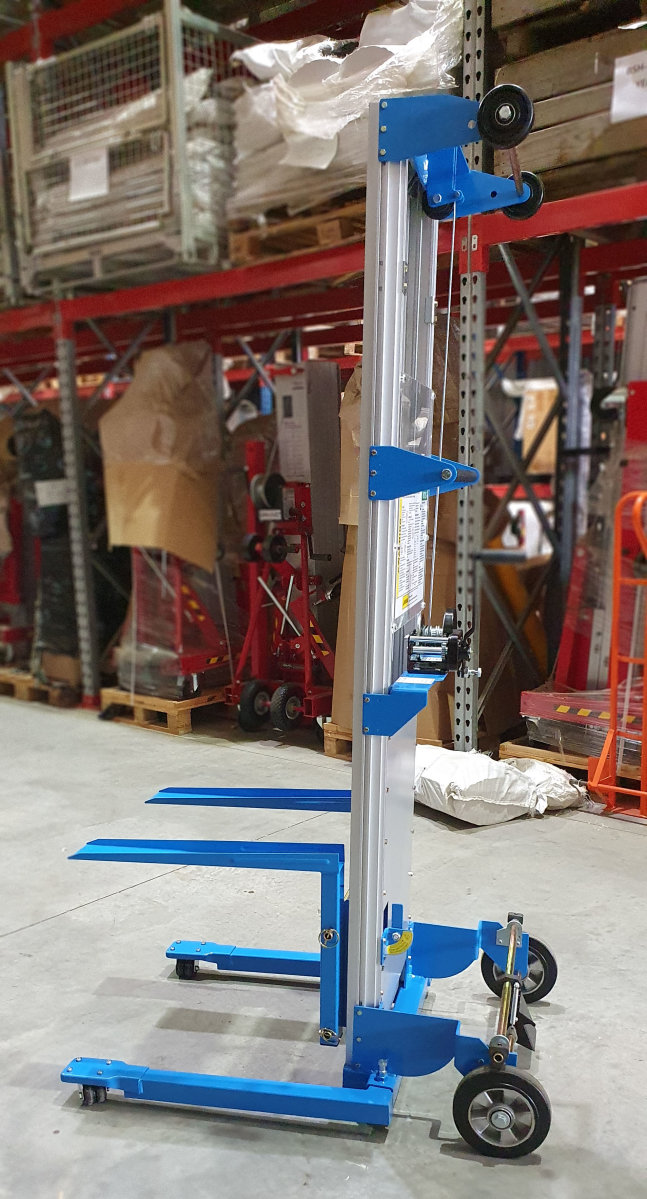

Easy to use and manoeuvre, this lifter is perfect for lifting heavy objects in confined areas. Equipped with wheels in the mast which also allows it to be used as a trolley.
