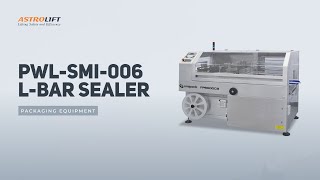

Automatic L-Bar Sealer Machine
L-Bar Automatic Sealer Machine
Model Number

PWL-SMI-006

Sealing Bar Length (mm)

640

Sealing Bar Width (mm)

510

Conveyor Speed (m/min)

10 - 30

Boxes Per Hour (#)

3000

Power Supply

Single Phase

Overall Length (mm)

2180

Overall Width (mm)

1537

Overall Height (mm)

1505 - 1665

Weight (kg)

660

Box Height (mm)

200



Enquire For Price

Add to Quote
Specification PDF

Stainless Steel, Automatic L-Bar Sealing Machine

This fully automatic L-Bar sealer from SMIPACK is designed and built locally in Italy, and provides higher output of production through an automated, highly economical system which delivers more packages per hour and with a consistency of packaging quality.

Automatic Sealing Machine Benefits

These Automatic L-Bar Sealers are proven to provide fast, effective and reliable shrink-wrapping, and is ideal for manufacturers with medium to high output demands. Fully automatic operation means that once the machine is running it will continue to do so until it runs out of shrink film.

Stainless Steel Shrink Sealing Solution for Clean-Area Production

The high quality stainless steel material and construction makes these Sealers extremely valuable in food, pharmaceutical and medical industries. In any situation where cleanliness and care of product is key, the Stainless Steel option of L-Bar Shrink Sealer ensures compliance for these industries.

Features & Benefits

  • Some Assembly Required
  • Stainless Steel (Hygiene Area Safe)
  • Ideal for use in wet-corrosive or hygiene-critical environments
  • Can handle both polyolefin and polyethylene centre folded film
  • Intermittent sealing system
  • PTFE-coated sealing blade on sealing bar
  • Operator interface with full-colour touch screen display
  • Inverters for each motor
  • In/out control modules with 16 digital inputs/outputs
  • Analogue input control modules
  • Automatic checking of transversal bar height
  • Dual sealing temperature adjustment
  • Possibility of packaging individual packs or groups of products
  • Electronically controlled conveyor belt speed
  • Instantaneous production
  • The system provides piece counter
  • The system provides pack length detection
  • The system provides real-time output
  • The system provides machine performance
  • Low power consumption

OPTIONAL EXTRAS

  • Compatible Heat Tunnels: PWT-SMI-003 and PWT-SMI-004
