Highlift Pallet Trucks

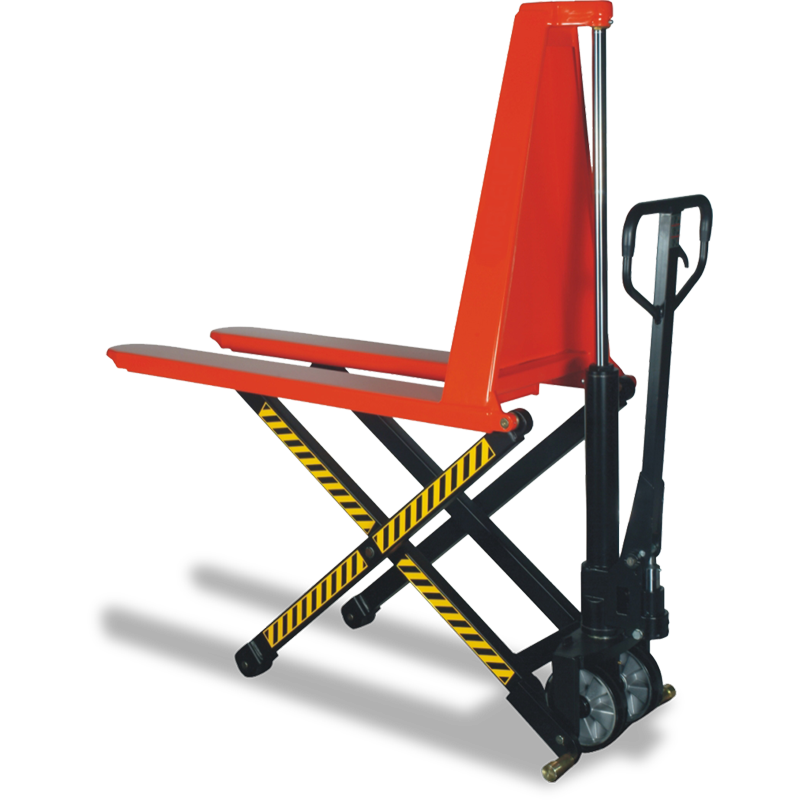

Manual Lift Pallet Truck

View & Buy Models

Transports Pallets, and Also Lifts Them to Work at a Safe Height
Heavy Duty Steel Construction, Durable Powder Coated Finish
1 Year Warranty


Model Number	QTH-NBL-001	QTH-NBL-002
Capacity (kg)	1000	1000
Fork Span (mm)	540	680
Fork Length (mm)	1170	1170
Fork Width (mm)	160	160
Lift Height (mm)	85 - 800	85 - 800
	$1,190.00 Add to Cart	$1,190.00 Add to Cart
Specification PDF	Download	Download

High-lift pallet trucks are for lifting pallets on the spot like a raised working platform, bringing the pallet to an ergonomic working height. Because of this, they cannot pick up pallets with bottom boards that would run under the forks or CHEP pallets. These trucks are designed for rigorous every-day use pushing and pulling pallets in a wide range of industries. They easily lift pallets with their tiller-pump and release trigger.

Features & Benefits

Physical
Powder-coated
Pump
2-Way
Three-position lever
Lower
Lift
Neutral
Pressure relief overload valve prevents damage of the pallet truck if it is loaded above its maximum capacity
Quick lift function where the lift speed is doubled for loads weighing 250kg or less
Ergonomic tiller with comfortable grip ensures operators can use the pallet truck for long periods of time without tiring
