Astrolift Logo

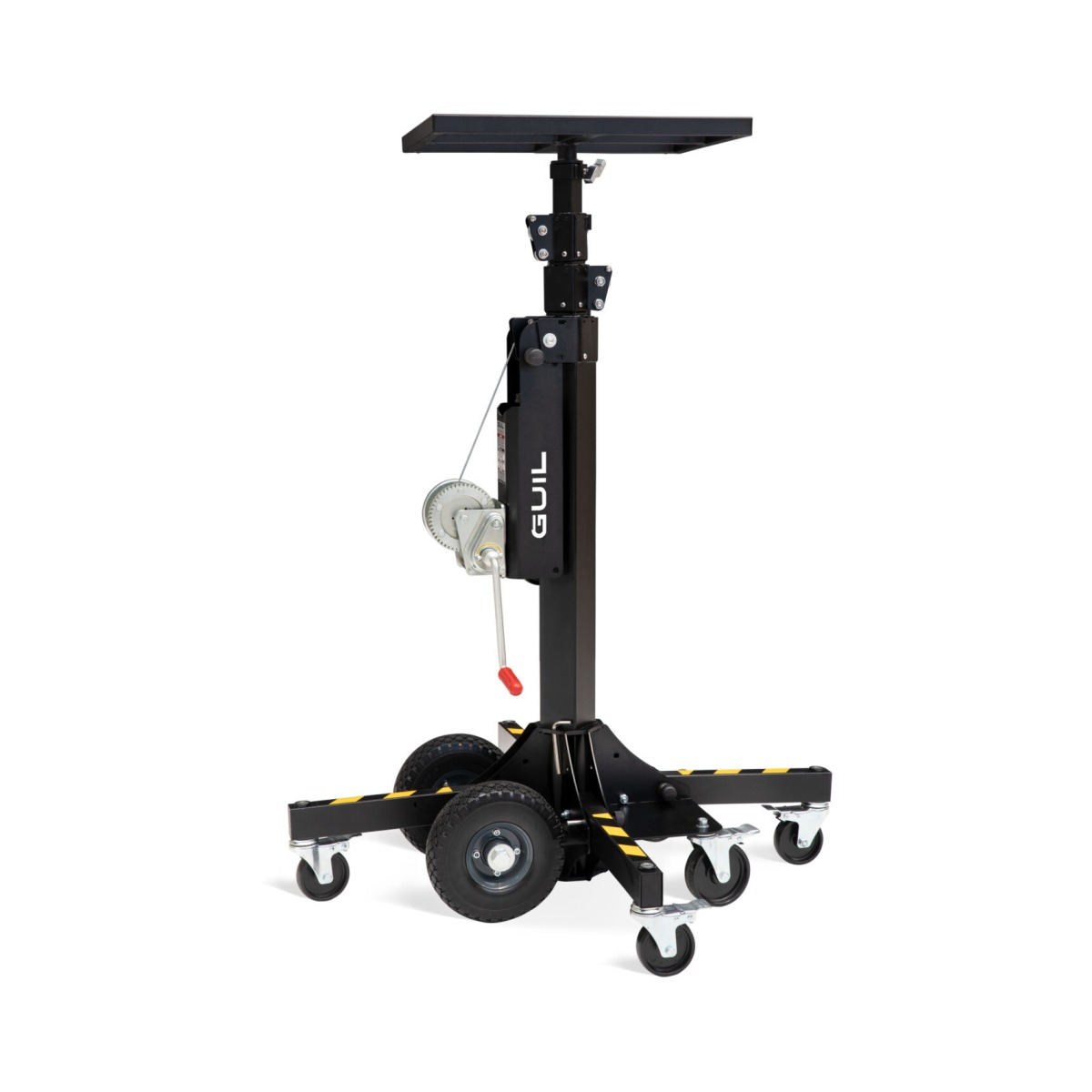

Material Lifter - 3.94m 125kgs

Material Lifter By Guil

View & Buy Models
  • Its special design allows it to be placed right next to the wall.
  • Fold-down winch arm (two positions), fitted with a handle and wheel for transportation in horizontal position.
  • Fast and easy set-up with no tools required.
  • Easily used by a single technician. Timesaving = Optimum Productivity.
Buy Material Lifter - 3.94m 125kgs in Top Loading Tower Lifters available at Astrolift NZ
Material Lifter 125kgs
Model Number

LUM-GUL-034

Maximum Lift Height (mm)

3940
Working Height (mm)

1320
Minimum Load (kg)

125
Net Weight (kg)

50
Folded Dimensions (mm)

500x560x1320
Double Swivel Castors & Brakes

Yes
Capacity (kg)

125


$2,495.00

Add to Cart
Specification PDF
Download

Material Lifter Guil 125kgs

Astrolifts Compact material lifter with a working height of only 1.32 m is Designed to raise loads of up to 125 kg to a maximum height of 4.00 metres

It Incorporates a new system WEIGHT-FREE DESCENT; which allows the lifter’s mast to be lowered with no load
Can be used right next to the wall if necessary by folding up one leg

The LUM-GUL-034’s compact base is fitted with 4 fold-down legs with wheels and levellers for a perfect adjustment on any kind of surface, and 4 extra wheels, two of them puncture-free, allowing the lifter to be transported comfortably over uneven ground.

The LUM-GUL-034 is the complete package for any modern installation or maintenance professional.

Features & Benefits

  • It incorporates a new system which allows the lifter’s mast to be lowered with no load (just with the weight of the load platform).
  • Compact base (56 x 50 cm) and small footprint for work in reduced spaces.
  • Fold-down legs with swivel wheels with brakes and levellers.
  • 260 mm puncture proof wheels on the base for transport over rough ground.
  • Lifts your loads quickly and effortlessly.
  • Maximum stability, safety and durability.
  • Compact design – Easy to manoeuvre in tight spaces and load in vehicles.
  • Auto-brake winch that blocks the load in place when the handle is released.
  • For industrial, commercial or domestic installations. For both indoor and outdoor use.
  • Manufactured with the most advanced technology, undergoing rigorous quality controls and complying with European CE standards.

OPTIONAL EXTRAS

  • Load tray (Ref. BC-10: 50 x 55 cm).
