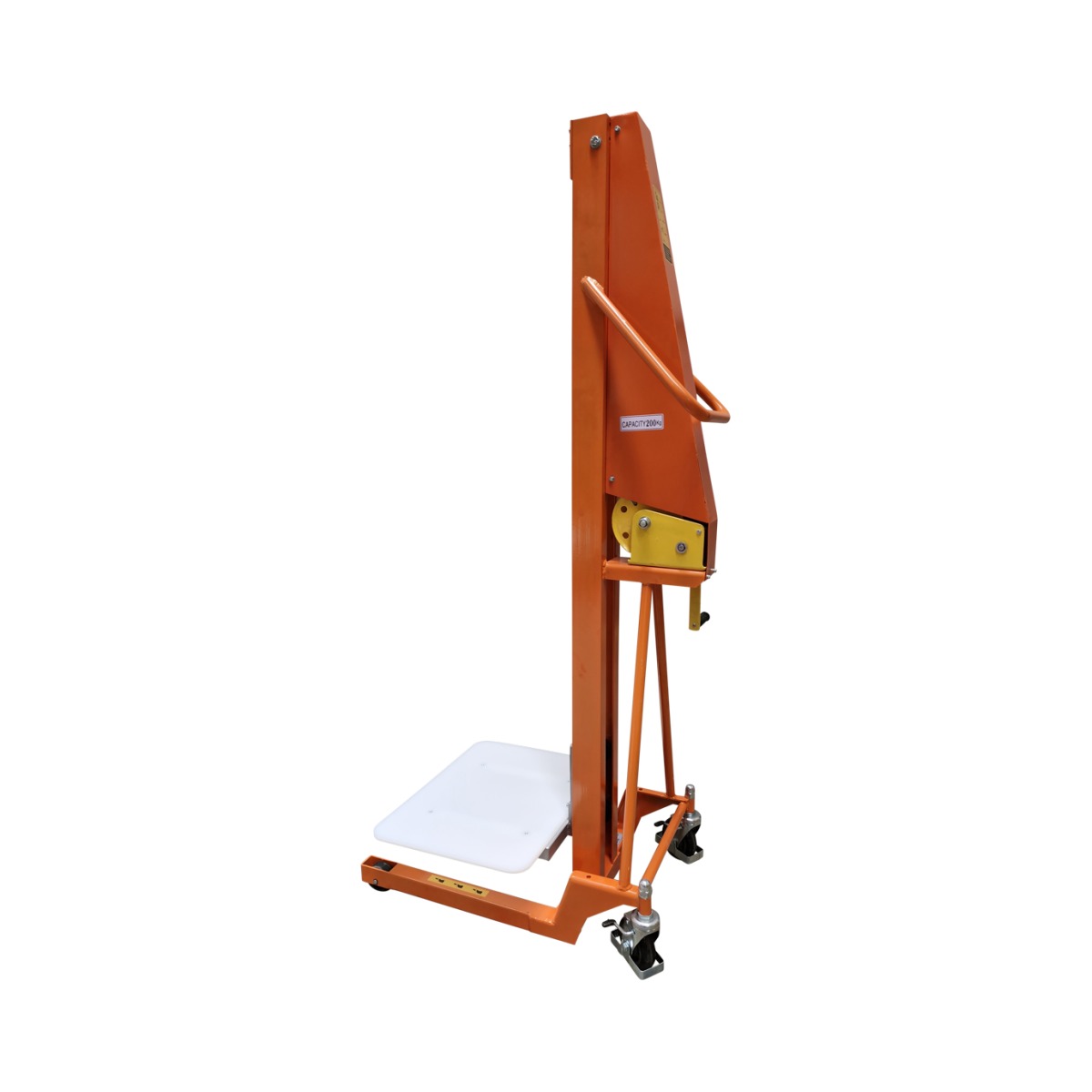

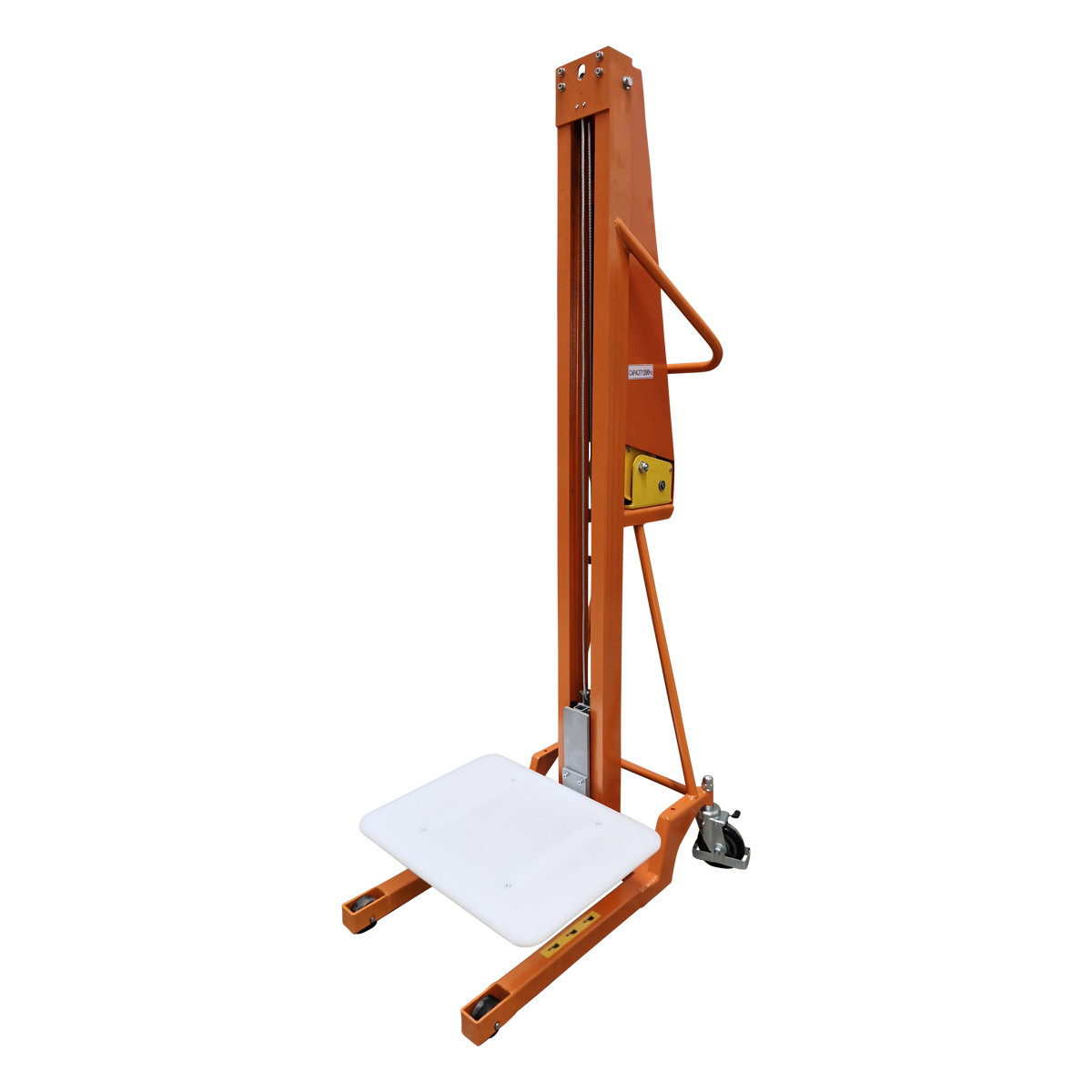

Manual Winch Work Positioner
Work Positioner
- Compact Design
- Manual Operation
- Simple Design
- 1 Year Warranty
Work Positioner
|
|
Model Number |
LUZ-NUL-004 |
Capacity |
200 |
Lowered Height (mm) |
115 |
Lift Height (mm) |
1600 |
Free Lift Height (mm) |
1600 |
Overall Height (mm) |
1945 |
Overall Width (mm) |
600 |
Overall Length (mm) |
940 |
Platform Length (mm) |
480 |
Platform Width (mm) |
600 |
Drive Type |
Manual |
Lift Type |
Manual |
Load Centre (mm) |
250 |
Outrigger Height (mm) |
80 |
Outrigger Length (mm) |
575 |
Width in Between Outriggers (mm) |
370 |
Front Wheel Diameter (mm) |
75 |
Rear Wheel Diameter (mm) |
125 |
Unit Weight (kg) |
73 |
|
Enquire For Price Add to Quote |
|
Specification PDF |

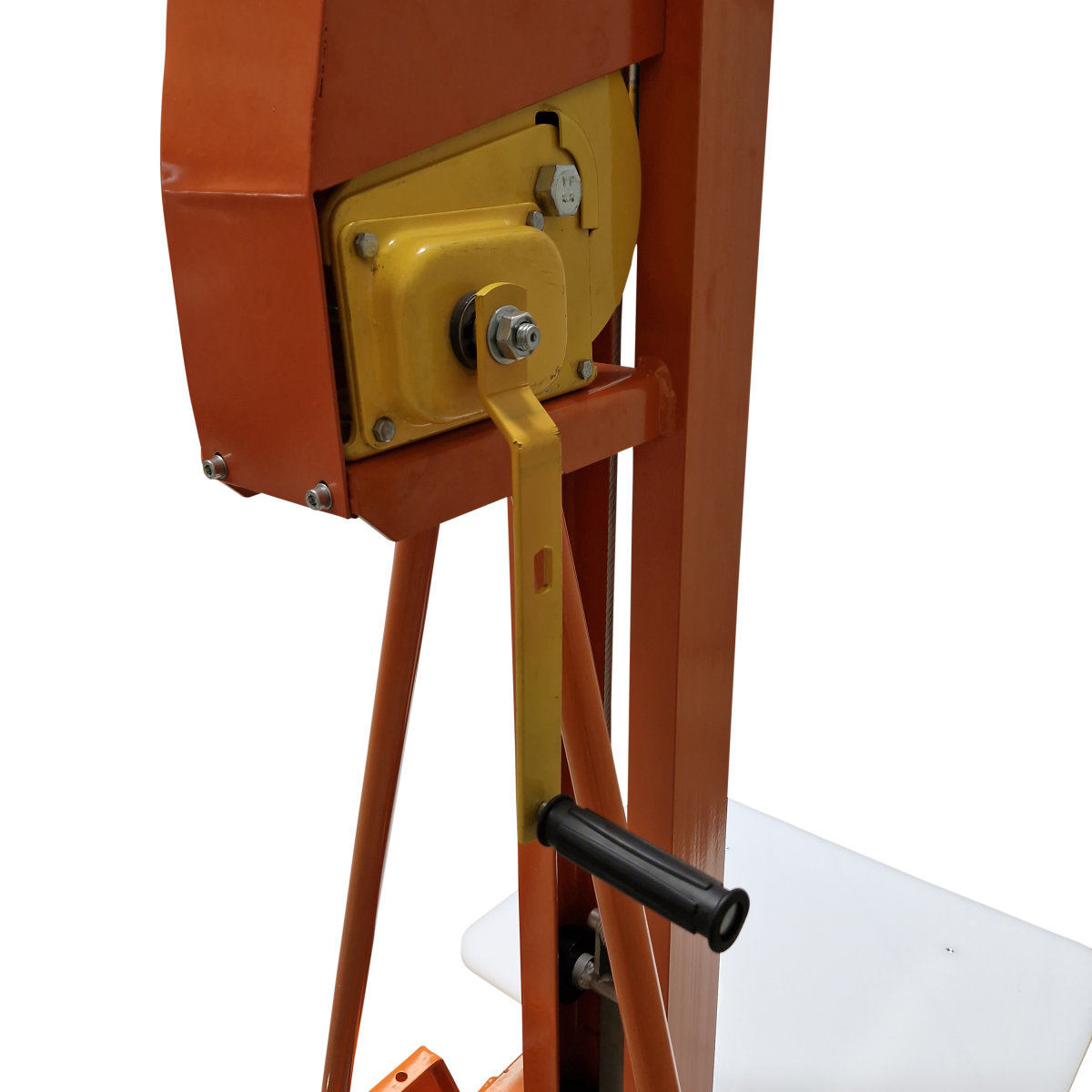

The Manual Winch Work Positioner is a versatile and reliable tool designed to enhance your efficiency and safety in lifting and positioning heavy loads. Ideal for industrial, manufacturing and workshop environments, this robust device uses a hand-operated winch mechanism to easily adjust the height or location of materials and equipment with minimal effort.
The winch work positioner offers smooth operation and long-lasting performance. Its manual design ensures that operators have precise control over load positioning, reducing the risk of accidents and improving workflow. The compact and portable nature of the device makes it perfect for use in tight spaces.
