Buy Scissor Lift Table Low-E (Electric) in Scissor Lift Tables from Edmolift available at Astrolift NZ
Buy Scissor Lift Table Low-E (Electric) in Scissor Lift Tables from Edmolift available at Astrolift NZ Buy Scissor Lift Table Low-E (Electric) in Scissor Lift Tables from Edmolift available at Astrolift NZ
Model Number

LTL-EDM-002

LTL-EDM-011

Capacity (kg)

600

600

Platform Length (mm)

1450

1450

Platform Width (mm)

900

900

Lift Height (mm)

80 - 720

80 - 970

Lifting Speed (m/s)

13

19

Weight (kg)

250

250



Enquire For Price

Add to Quote

Enquire For Price

Add to Quote
Specification PDF

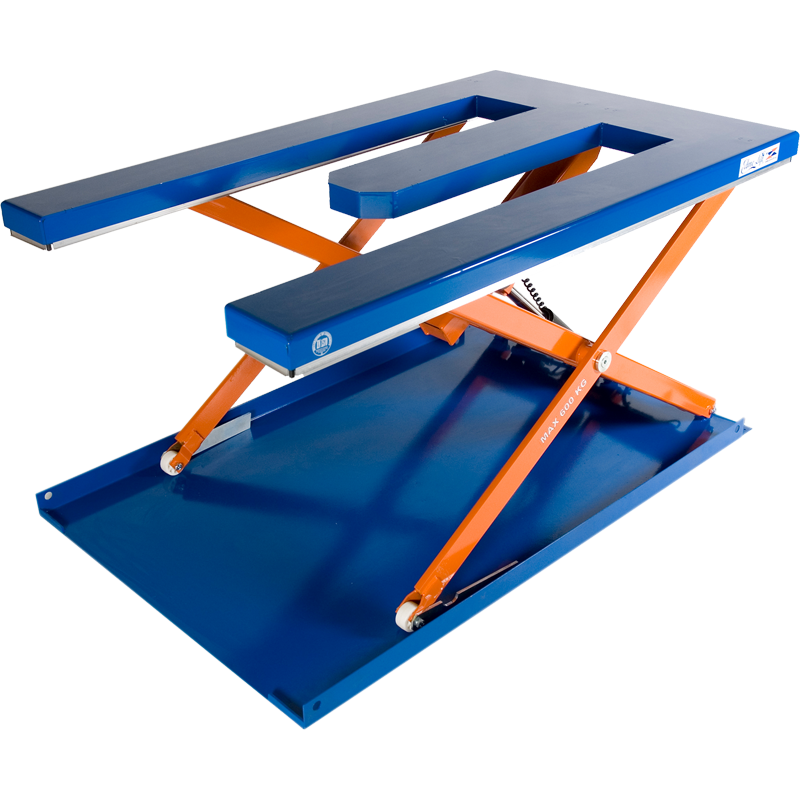

Hydraulic Lift Tables elevate products at the push of a button, whether acting as an elevated workbench or lifting products up to higher levels. Heavy, repetitive lifting can be slow and inefficient while risking the possibility of injury and back strain. At the push of a button, these tables raise or lower to provide the ultimate working height. Low-profile units are designed for easier loading by pallet truck. This unit can have a ramp attached for getting a pallet onto the table.

E-shaped tables allow a pallet truck to drive in at ground-level, then drop out from underneath the pallet to exit the table. This only works when lifting pallets with no runners going under the forklift tines. The prong of the E provides additional support under the centre of the pallet. These tables have a powder-coated finish, making them ideal for use indoors in dry environments.

Features & Benefits

  • Powder-coated
  • Electric
  • IP 54
  • 24 V DC control unit and operating device with an emergency stop button
  • PLC control with the capability to program various functions to individual requirements is included for the standard model
  • Pressure relief overload valve prevents damage of the lift table if it is loaded above its maximum capacity
  • Pressure compensating flow valve controls the lowering speed
  • Maintenance-free bearing surface
  • E-shaped tables allow a pallet truck to load and unload pallets at ground level
  • Lifting eye bolts in the base frame for more flexible transportation and installation
  • IP54 approved electrical system
  • Mechanical locks for safety during servicing and maintenance
  • Anti-entrapment bar on all four sides of the table acts as an emergency stop button when it is hit
  • Safety clearance between scissors to prevent trapping during operation
