Pallet Stacker 500kgs
500kg Electric Pallet Lifter
- Battery Powered Lift
- Adjustable Forks
- Built in Charger
- 1 Year Warranty

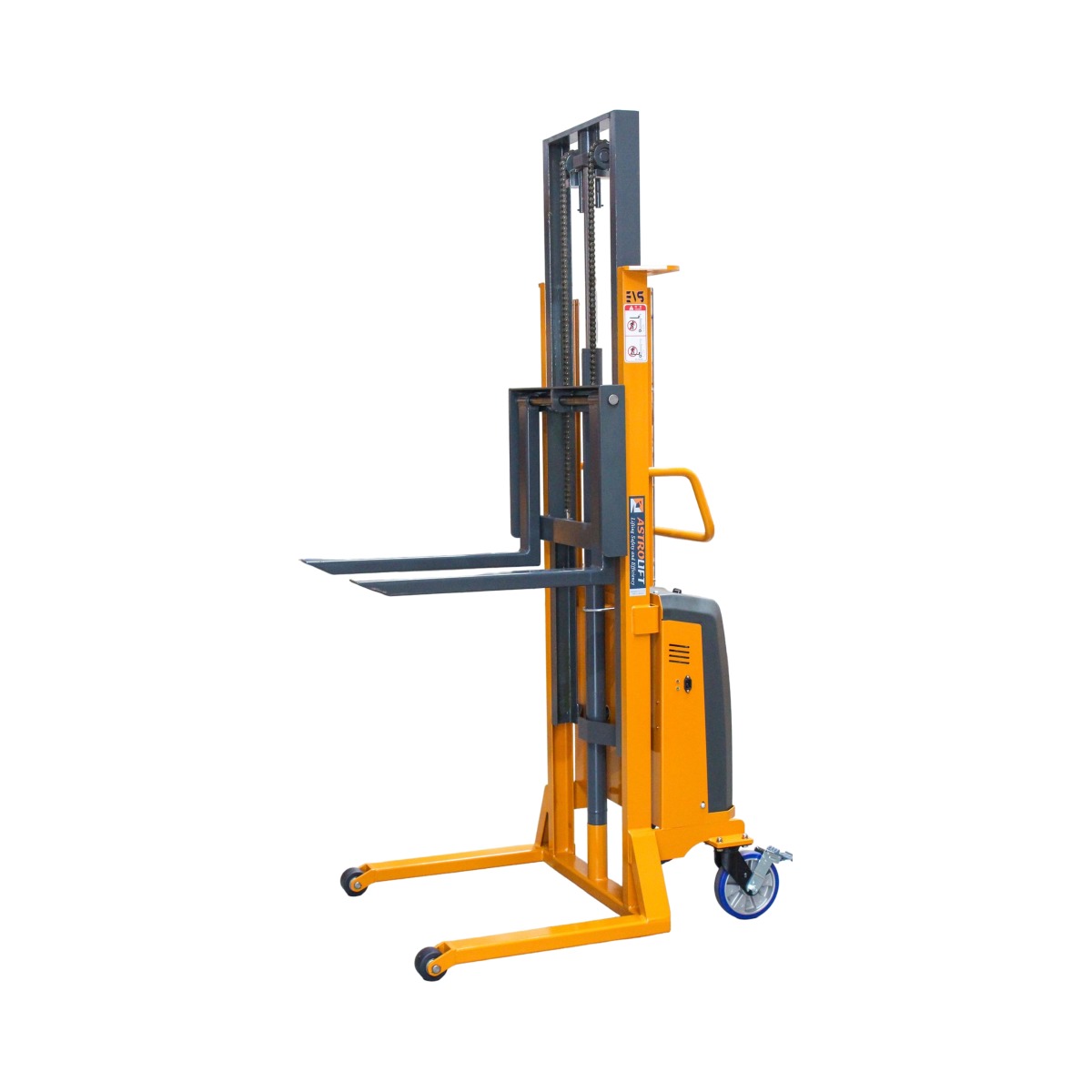

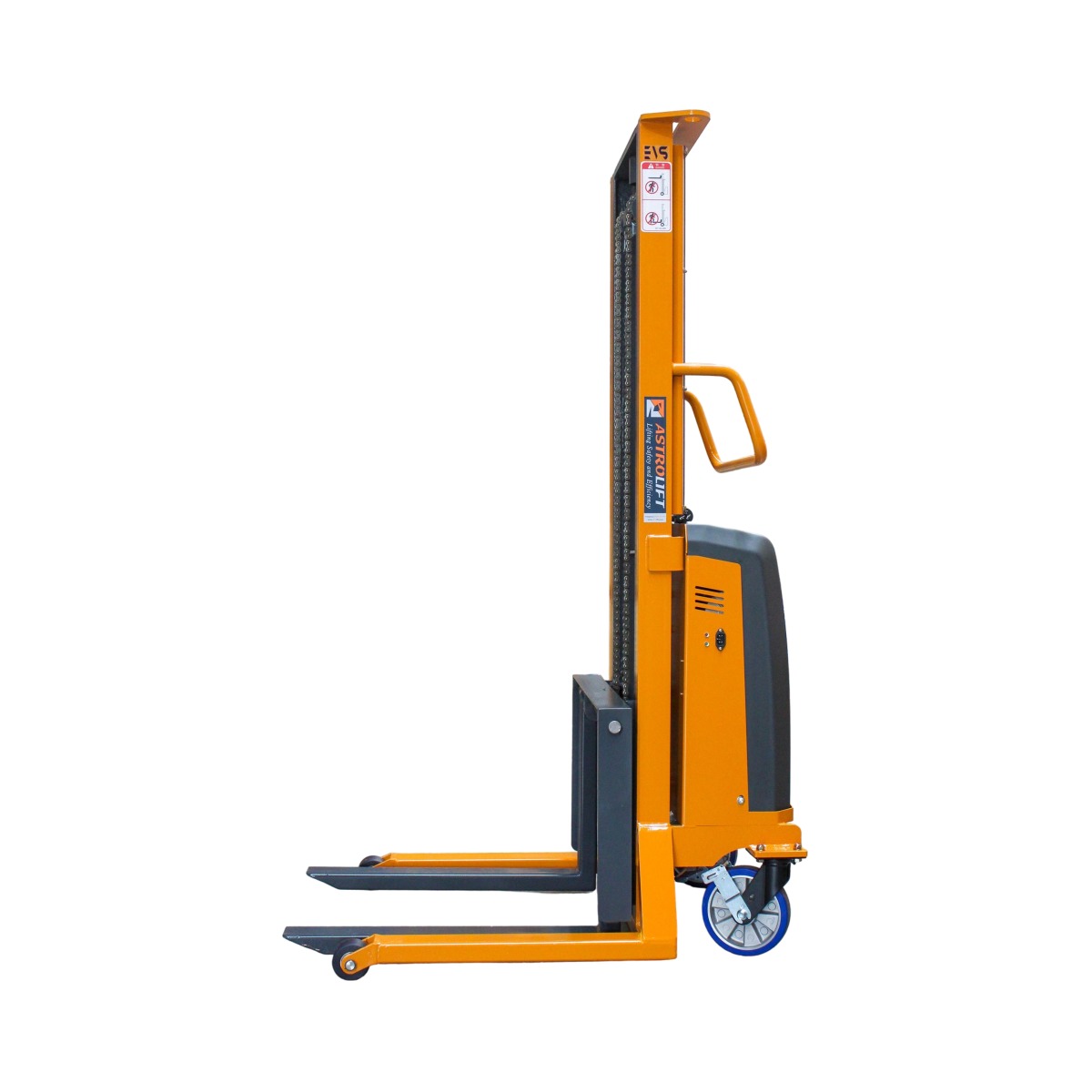

500kg Electric Pallet Lifter
|
|
|
Model Number |
LPG-SOO-001 |
LPG-SOO-002 |
Capacity (kg) |
500 |
500 |
Lift Height (mm) |
1500 |
2500 |
Fork Length (mm) |
700 |
700 |
Fork Spread (mm) |
165 - 680 |
165 - 680 |
Overall Height Lowered (mm) |
2030 |
1890 |
Overall Height Fully Raised (mm) |
2030 |
3055 |
Free Lift Height (mm) |
1500 |
210 |
Overall Width (mm) |
860 |
860 |
Overall Length (mm) |
1155 |
1155 |
Load Centre (mm) |
350 |
350 |
Width in Between Legs (mm) |
685 |
685 |
Leg Length (mm) |
660 |
660 |
Fork Size (mm) |
75 x 45 |
75 x 45 |
Front Wheel Diameter (mm) |
80 |
80 |
Rear Wheel Diameter (mm) |
200 |
200 |
Unit Weight (kg) |
240 |
280 |
Hydraulic Motor (kW) |
DC 12v x 1.6KW |
DC 12v x 1.6KW |
Battery |
12v x 125Ah / 20Hr |
12v x 125Ah / 20Hr |
Battery Charger |
Single Phase 220v x 50/60Hz |
Single Phase 220v x 50/60Hz |
|
Enquire For Price Add to Quote |
Enquire For Price Add to Quote |
|
Specification PDF |
The Battery Electric Pallet Stacker with it 500kg Capacity is a versatile and efficient material handling solution designed to streamline workplace operations. This manually propelled, compact yet robust machine is equipped with a powerful battery electric motor for lifting and a rechargeable battery, providing user-friendly and quiet operation suitable for a wide variety of uses.
Overall, the Battery Electric Pallet Stacker with a 500kg Capacity offers efficient, user-friendly, and reliable performance, making it an essential tool for material handling and logistics operations in warehouses, distribution centers, and manufacturing facilities.
